Revopoint Miraco Plus 3D Scanner

Awarded the prestigious Red Dot Award 2024, the Red Dot Award is a universal solution combining highly accurate photogrammetric metrology with the flexibility to scan both smaller details such as screws and large industrial objects. Dual optical magnification and up to 20 frames per second speed allow clear and quick capture of even the most complex shapes, while the 48 MP RGB camera ensures vivid, natural color reproduction in 8K quality. The integrated 9-axis IMU stabilizes every movement, eliminating blur, and the 180° tiltable 2K AMOLED screen allows intuitive real-time monitoring of your progress. A four-step workflow (marker preparation, capture, point cloud calculation and fixation, and processing and export) simplifies prototyping and advanced design, offering high-quality measurements without additional services.

Innovative photogrammetric metrology

The foundation of Miraco Plus is an extremely efficient photogrammetric metrology system that reduces error accumulation in real-time by merging sequential point cloud fragments. Thanks to it, every shape, even the most complex, from impressive sculptures to tiny mechanical components, is represented with unparalleled consistency. Single-frame accuracy reaches up to 0.04 mm, so no detail is missed. Photogrammetric length accuracy of 0.02 mm + 0.05 mm × L (m) ensures your model matches real dimensions.

From microscopic screws to large industrial objects

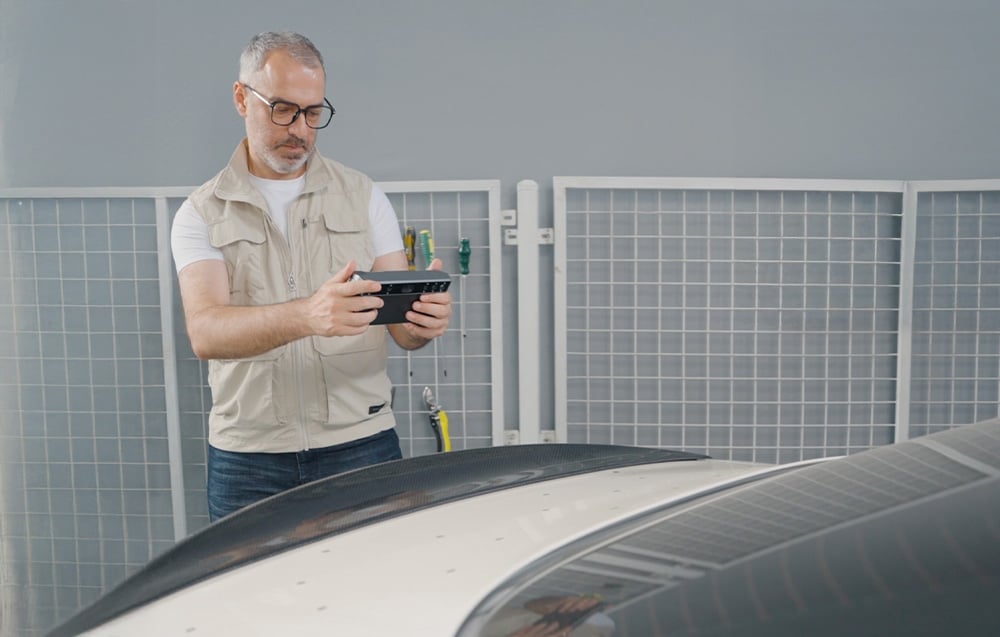

Miraco Plus easily handles both delicate ornaments and large automotive or motorcycle components. 2x optical magnification allows focusing on the smallest details, while a capture speed of up to 20 frames per second means you can scan even long objects quickly and smoothly. You can adjust two operating modes (single-frame and continuous) according to your needs, no matter how complex the surface you are scanning.

Unmatched color quality and stability

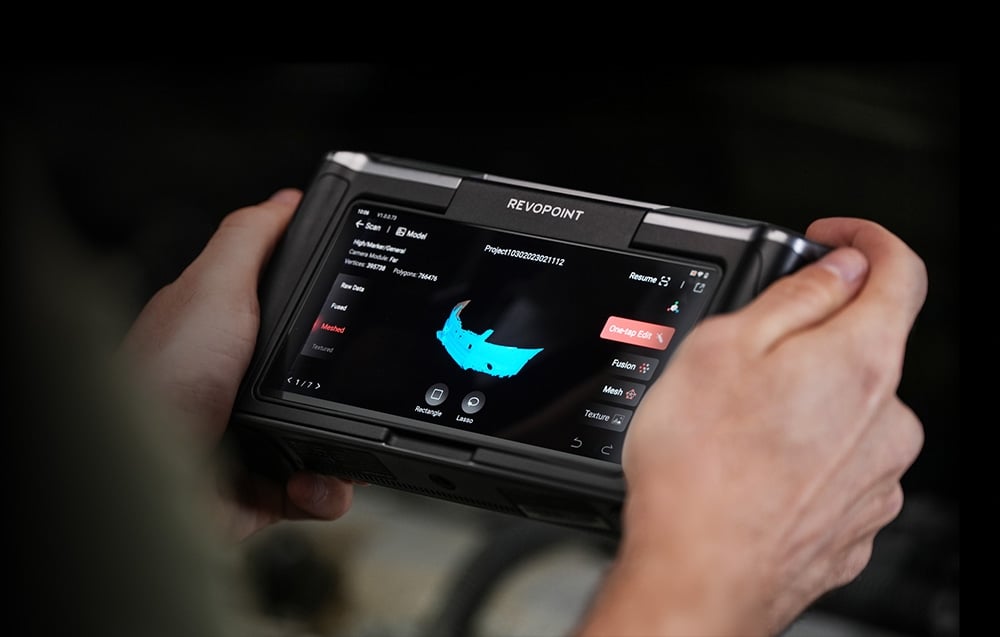

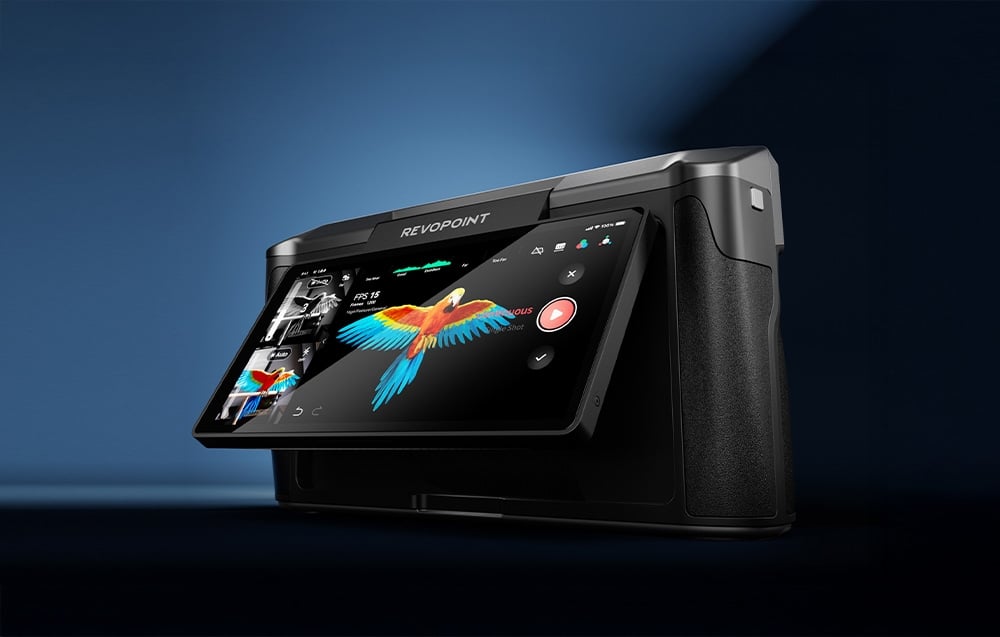

The integrated 48 MP RGB camera captures the full color spectrum in 8K quality, so finished 3D models require no additional color correction. Stabilization based on a 9-axis IMU (Inertial Measurement Unit – a module that measures an object's acceleration and angular velocity in space using accelerometers and gyroscopes) eliminates blur and shake even when working outdoors or without a tripod. A large, 2K AMOLED (Active Matrix Organic Light Emitting Diode – an advanced screen technology using organic light-emitting diodes) screen, tiltable up to 180°, allows monitoring the scanning process in real-time and in any position.

Intuitive four-step workflow

Viss digitalizācijas process tiek samazināts līdz četrām vienkāršām darbībām, kas tiek veiktas, nepārnesot datus no ierīces līdz galīgajai eksportēšanai. Pirmais solis ir sagatavošana (pievienojamo mērīšanas lentes, kodēto mērķu un marķieru izvietošana uz objekta vai ap to – tie ir fotogrametriskās analīzes atskaites punkti), fotografēšana (fotografēšana no dažādiem leņķiem un augstumiem, līdz katra objekta daļa būs kadrā), punktu mākoņu aprēķināšana un fiksēšana („Miraco Plus“ automātiski atpazīst marķieru pozīcijas, apvieno kadrus un rada secīgu punktu mākoni) un apstrāde un eksportēšana (attīstīta programmatūra ļauj koriģēt, filtrēt un rediģēt modeli, un tad ar vienu klikšķi eksportēt galīgo failu uz darbvirsmas vai mākoni).

Iekļauts

• „Miraco Plus“ 3D skeneris
• mērīšanas lentes
• magnētisko marķieru komplekts
• lipīgo marķieru komplekts
• statīvs
• skanneris
• krūšturis (skenēšanai)
• skannera vāks
• marķieri
• 65 W adapteris ar diviem USB C tipa pieslēgvietām
• kalibrēšanas plāksne skenēšanai no attāluma x4
• kalibrēšanas plākšņu pārnēsāšanas ietvars
• kalibrēšanas plāksne liela mēroga skenēšanai
• “brīnumains paklājiņš” x2
• USB-C uz HDMI adapteris
• USB-C uz A tipa adapteris
• plaukstas siksniņa
• turēšanas soma
• lietotāja rokasgrāmata
